Traxxas Revo 3.3 Rebuild

(date: August 15, 2009)

Click here to view my gallery!

Here is a list of parts that I need, the price is taken from

Traxxas Front/Rear Body Mounts w/Posts & Pins Revo (part number 5314 – 10.29)
Traxxas Slipper Pressure Plate & Hub Alloy Revo (part number 5351 – 7.69)
Traxxas Rebuild Kit Revo/Maxx Trucks (part number 5352X – 7.19)
Traxxas Chassis Revo 3.3 (part number 5322X – 49.99)
Traxxas Front/Rear Aluminum Bulkhead Anodized Blue Revo (part number 5323 – 8.99)
Traxxas Steel Pushrod Revo (part number 5318 – 6.69)
Traxxas Fr Bulkhead Revo (part number 5330 – 13.99)
Traxxas Aluminum Exhaust Header (part number 5340 – 17.99)
Motor Saver Filters Air Filter 2.5/3.3 Revo (part number RT80 – 19.99)
Tekno RC RX/Battery Box & Fuel Tank Conversion for Revo (part number TKR1002 - 22.99)

If I bought everything from the online store it would cost me over $165 for all the parts I need and that does not include shipping. So once again I have to resort to ebay to get the best deal as possible.

In the table below is all the items I purchased on ebay, and everything else I had already.

Item Cost
Motor Saver rt60 air filter 10.87
Tekno Rc Revo Upgrade Pack TKR1000X 15.52
Traxxas revo 3.3 clutch bell assembly 4.25
Traxxas Revo 3.3 Slipper Clutch Spur Gear Complete 5352 6.05
Traxxas Revo 3.3 Polished Resonator Tuned Pipe & Header 20.5
Traxxas Revo 3.3 Extended Blue Aluminum Chassis & Brace 18.95
Traxxas Revo Body Mounts / Posts / Pins Shock Towers 3.51
Traxxas Revo 3.3 150cc Fuel Tank & Lines! New! 5363x 2.38
total 82.03

So I had to spend about $82.03 (thats not including shipping) to get the Revo up and running. As of Sunday August 16, 2009 I have orderd all the items from ebay.

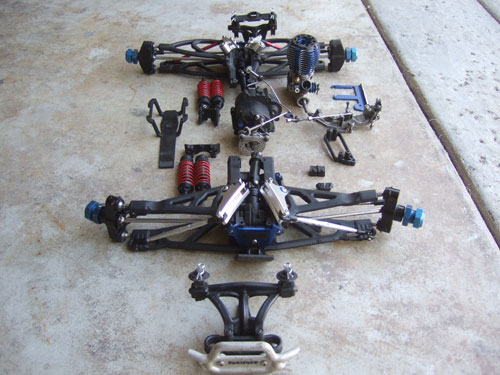

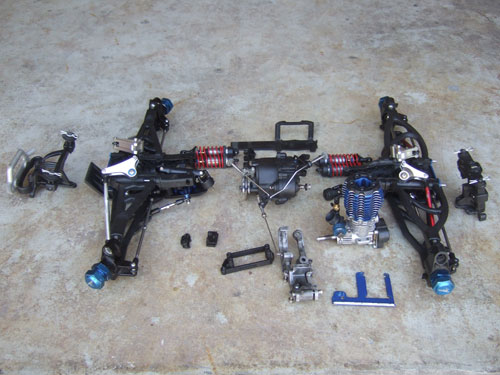

After spending some time breaking down the truck and cleaning it up here is a pictures of all the parts i have to make it as complete as possible. Now I have to wait for the rest of the items to arrive in the mail.

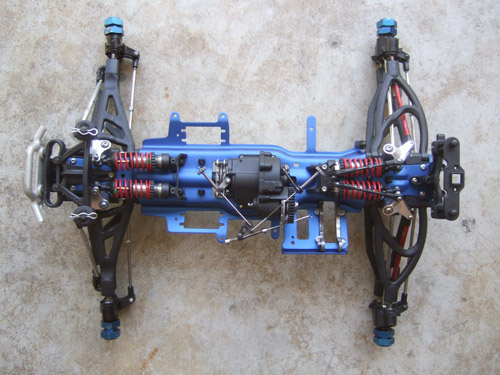

I finally got the new chassis in the mail, and this is how it looks with the parts mounted.

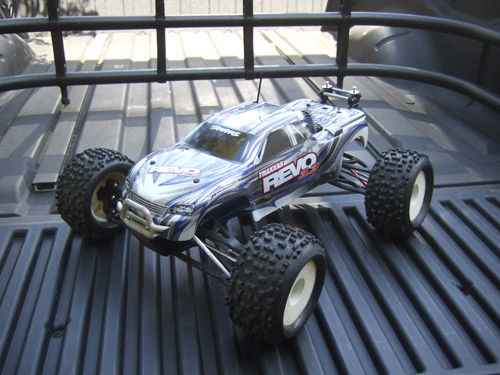

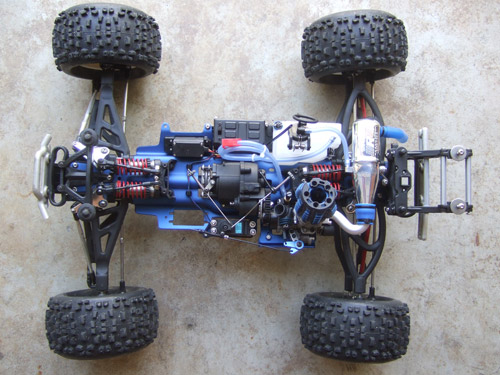

Here is a picture with the new parts installed except for 2 things (motor saver air filter, rear wing) that I am still waiting for in the mail.
I have purchased some upgrade parts like:

  • Tekno RX and battery holder kit
  • Tekno swaybars
  • Tekno throttle linkage kit
  • Tekno rear wing mount
  • Traxxas resonator tuned pipe
  • Traxxas stock 150cc fuel tank

I also threw on a few parts that I had already like:

  • MIP Aluminum Pushrods
  • Proline 23mm wheel hubs
  • Stainless screws
  • Traxxas front bulkhead
  • Traxxas aluminum rear brace
  • Hitec HS-595TG Steering Servo (333oz. in .15 sec at 6V)
  • Airtronics 91457 Throttle Servo (95oz. in .06 sec at 6V)
  • Spektrum SR3000 RX
  • Traxxas Stock RX battery pack

To view my shopping spree on ebay Click Here.
