FlipTop Tool Stand - Phase 2

(date: april 24, 2010)

Click here to view my gallery!

After building the fliptop tool stand I was too heavy to move anywhere, to before I can continued working on it I needed a mobile base.  Once again I was went to ebay to purchase some heavy duty caster wheels, this time I came across some authentic Colson wheels and not some fake knockoffs.  After building my 4 th mobile base I think I finally got it down and this is cleanest one I build yet, with not cracks or split wood.

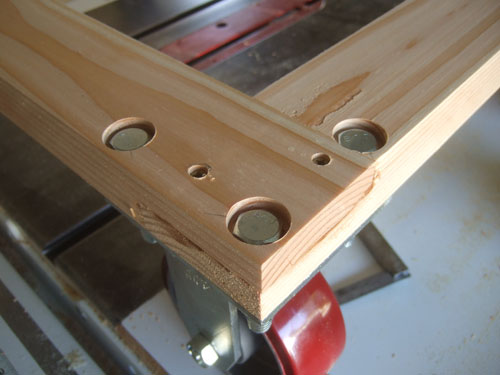

I used a lap joint for the 2 ends because it is quick easy and strong. Then I screwed the 2 ends together with two #8 deck screw while the glue dried. After an hour or so, I marked the holes for the caster wheels and use a forstner drill bit to drill out a hole dept enough so the screw will sit flush with the top of the wood. Then I changed to a smaller forstner bit to drill through the wood.

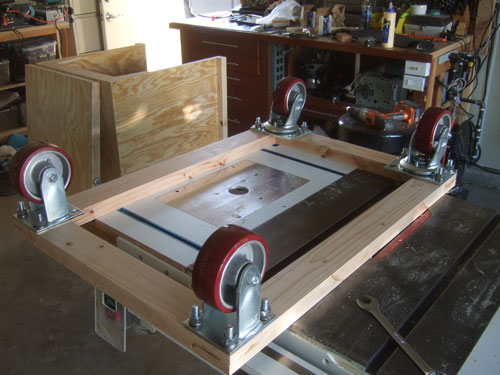

Here is the mobile base all ready to go.

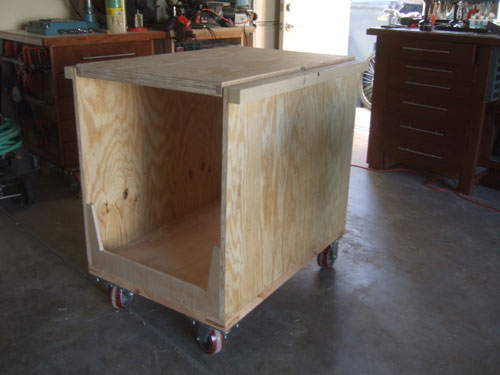

Now with the mobile base installed it give the table a firm structure and flex free. Without the added support of the flat piece of wood on the bottom, the table skews when you try to move it.




... continue to phase >>
